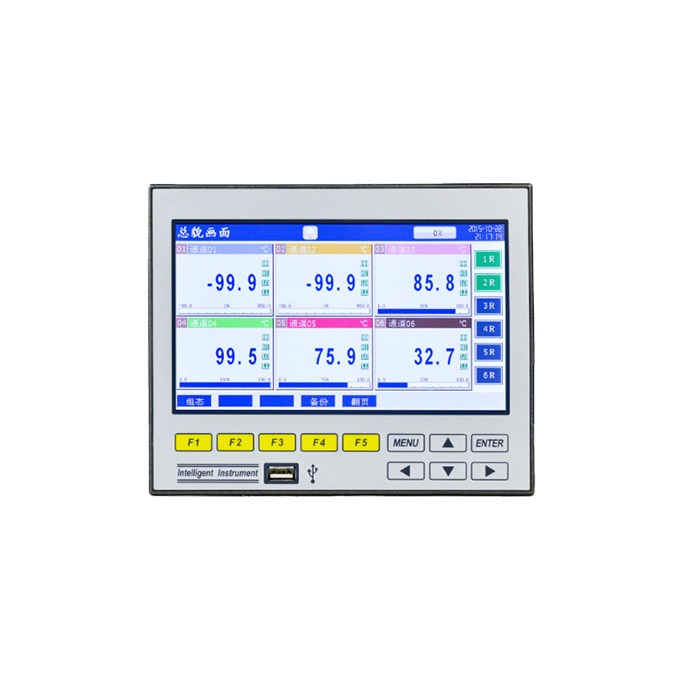

R7100 Ultra-thin Wide-screen Paperless Recorde

Product Series

R7100 Ultra-thin Wide-screen Paperless Recorder The R7100 ultra-thin wide-screen paperless recorder features slim thickness, high integration, rich color display, comfortable operation, complete functions, high reliability and excellent cost performance. Developed by our company, this ultra-thin wide-screen paperless recorder is designed to meet the practical demands of users and meanwhile upgrade their intuitive usage experience. It is widely applied in industries including petroleum and petrochemical, chemical industry, papermaking & plastics, textile printing and dyeing, metallurgy and building materials, scientific research & national defense, biomedicine, municipal environmental protection, energy metering, food and grain, tobacco, alcohol & beverage, equipment manufacturing, complete equipment sets, agriculture, forestry, animal husbandry and fishery.

Product Features:

·Installation thickness: 85mm

·High-precision 24-bit sampling

·Military-grade power supply

·Standard communication port

·Industrial ARM9 chip platform

Customization Support:

·Customizable faceplate and boot interface

·Customizable private communication protocol

·Customizable industry-specific application control

·Customizable functions of system management software

·Customizable process configuration animation function

·Customizable cloud management and report functions

·Supports 12V/24V power supply

Installation Method:

·Step 1: Push the instrument forward into the mounting hole from the front of the mounting panel (steel plate is required). The thickness of the mounting panel shall be 1.5~4.0 mm.

·Step 2: Install the mounting brackets supplied with the instrument as shown in the figure above (install two brackets on each of the left and right sides of the instrument; M3 standard screws shall be used for the instrument mounting brackets).

·Step 3: After the main body of the instrument is installed, connect the signal lines and power lines.

R7100 Ultra-thin Wide-screen Paperless Recorder English Instruction Manual.pdf
