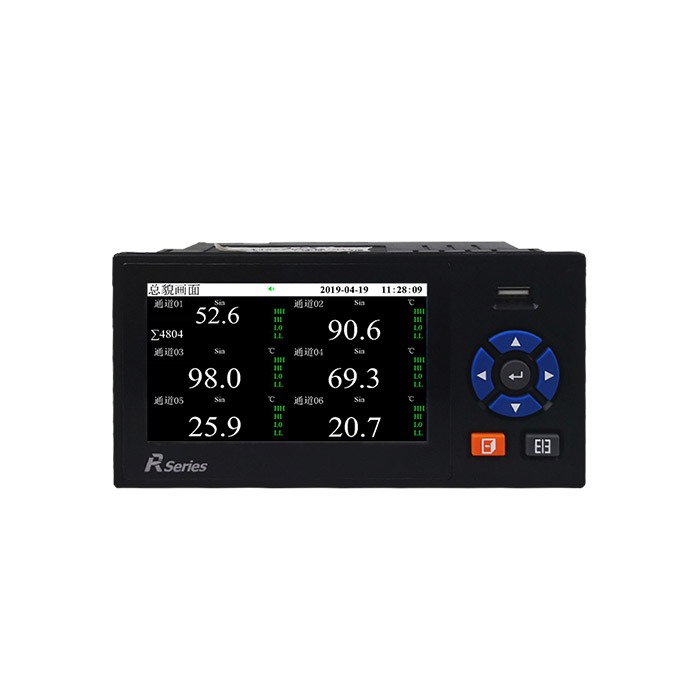

R6200 Enhanced Color Flow Paperless Recorder

Product Series

R6200 Enhanced Color Flow Paperless Recorder It is a professional flow recorder product with compact size, rich colors, large windows and dazzling pictures. It is fully functional, has good anti-interference performance and extremely high reliability. Its main purpose is to address the concerns of fluid measurement units, meet the needs of measurement units and save the costs of measurement units. This product processes the input signals that need to be monitored and recorded in the industrial field through a high-performance microprocessor and converts them into recognizable and readable signals. On the one hand, it displays them in various forms of pictures on the high-resolution liquid crystal display screen. On the other hand, it stores the monitoring signal data in the large-capacity storage chip inside the instrument and can directly query, browse and print the data and graphics on the instrument. It is mainly applied in various industries such as petroleum and petrochemicals, ch

Product Features：

Supports 6-channel universal input, capable of recording the operating status of multiple devices simultaneously.
Adopts flow totalization and flow report recording functions for up to 6 flow meters, enabling convenient recording and monitoring of multiple units.
Equipped with military-grade switching power supply, featuring higher stability and longer service life.
Silicone keys with comfortable hand feel and long service lifespan.
Supports customized non-standard development with no threshold limitation.
Compatible with R-LINK operation software, realizing free system application.

Non-standard Customization：

Customizable 4-channel relay output.
Customizable special signal input.
Customizable process flow and setting interface for PC management system.
Customizable data report function for cloud management system.
Customizable data analysis function for cloud management system.
Customizable SMS alarm and flow management functions for cloud management system.

Installation Method：

Step 1: Push the instrument into the mounting hole from the front of the mounting panel (steel plate is recommended). The thickness of the mounting panel shall be 1.5~6.5 mm.
Step 2: Install the supplied mounting brackets as shown in the figure above. Fit one bracket on each of the left and right sides of the instrument, and fasten the brackets with standard M4 screws.
Step 3: After the instrument body is fully installed, connect the signal cables and power cables.

R6200 Enhanced Color Paperless Recorder English Manual.pdf
