F3300H Exquisite Heat Totalizer

Product Series

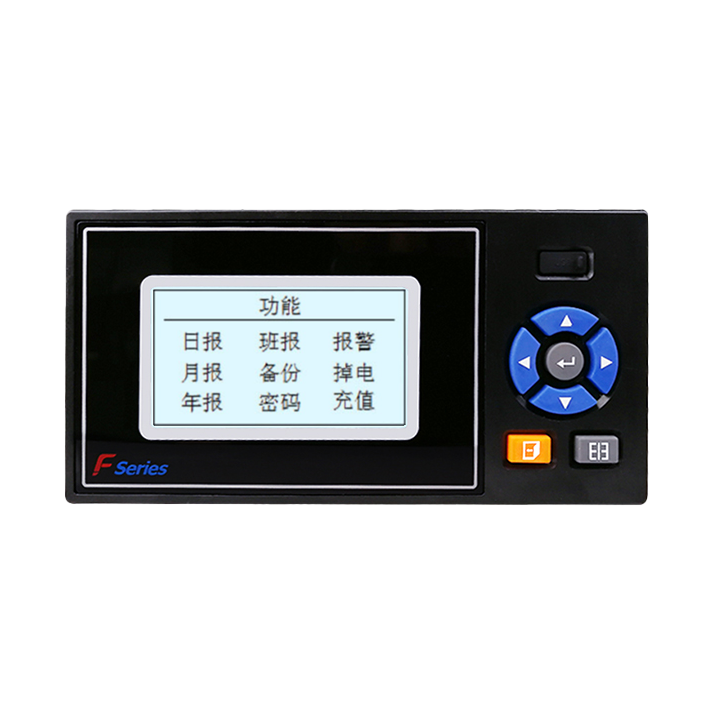

F3300H Exquisite Heat Totalizer The exquisite heat (cold) totalizer is an instrument based on an ARM microprocessor. It works with various flow transmitters and sensors to measure flow, and pairs with two platinum thermal resistors (or temperature transmitters) to complete heat measurement of liquid heat carriers or cold energy measurement of cold media. It collects, displays, controls, remotely transmits, communicates and prints various on-site signals such as temperature and flow, forming a digital acquisition and control system. It is especially suitable for trade settlement and metering management. It can be widely applied in heating systems such as heat conduction oil boilers and water heating, as well as building air conditioning heat exchange systems. It realizes on-line metering of heat and mass transfer, thereby providing a basis for enterprise energy management, energy consumption measurement and technical economic analysis.

Product Features:

· Storage Function:

Equipped with USB function, supporting the export of daily, monthly and yearly flow reports.

It can record power failure times, total power failure duration and the last power failure time.

· Prepaid Management:

It can automatically close the valve to stop service when the balance is zero.

Supports remote recharge and contactless IC card recharge.

Dual-level passwords for suppliers and demanders with different permissions to solve supply and demand management issues.

· Calculation Function:

Calculates the density, enthalpy and other parameters of superheated steam and saturated steam based on the IF97 formula.

Supports dual compensation of temperature and pressure, and can automatically identify superheated steam and saturated steam.

Guarantees normal trade settlement when the compensation end sensor is in abnormal status.

· Management Function:

Enables protocol metering algorithm for high flow and low flow scenarios.

Supports metering in peak, valley and flat periods.

Sets daily quota, monthly quota and balance attribution to realize daily and monthly consumption management.

Non-standard Support:

· Supports customized report export function.

· Supports customized settlement methods.

· Supports customized heat calculation methods.

Installation Method:

· Step 1: Push the instrument forward into the mounting hole from the front of the mounting panel (steel plate is recommended). The thickness of the mounting panel shall be 1.5~6.5 mm.

· Step 2: Install the mounting brackets supplied with the instrument as shown in the figure above (one bracket shall be installed on each of the left and right sides of the instrument; M4 standard screws shall be used for the instrument panel mounting brackets).

· Step 3: After the main body of the instrument is installed, connect the signal lines and power lines.
