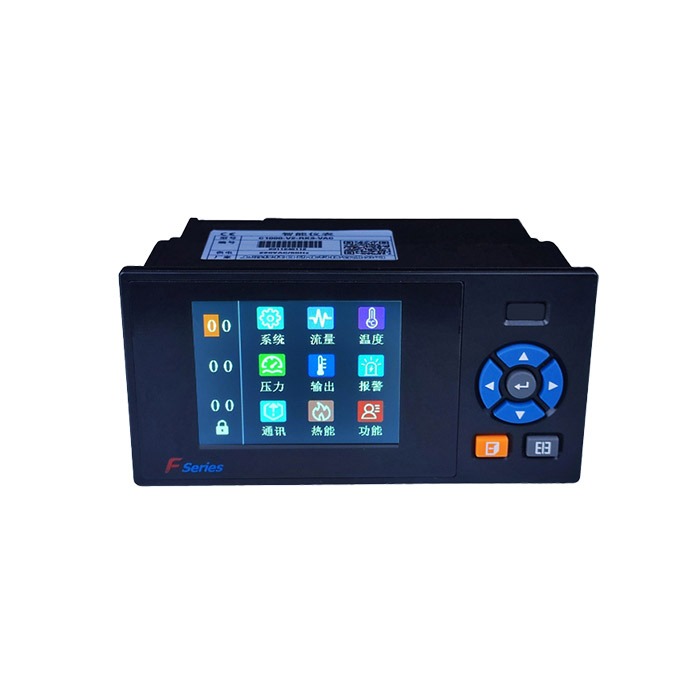

Product Features:

·Wide applicability to various flow meters and fluid media

·Automatic conversion of flow units and automatic calculation of flow coefficients for differential pressure flow meters

·Steam density calculated in accordance with the IAPWS-IF97 formula; automatic identification of superheated and saturated steam states

·Emergency fault tolerance function: When temperature or pressure signals are abnormal, emergency parameter values are adopted for compensation calculation

·Commissioning and calculation function: Supports viewing raw signal values of each transmitter/sensor; supports viewing intermediate parameters in flow calculation such as density

·Audit record: Power failure recording function

·Alarm list: Records alarm information for instantaneous or accumulated values including flow rate, temperature, pressure, differential pressure/frequency/volume/mass

·Accumulation report: Supports shift, daily, monthly and yearly reports of accumulated flow

·Communication function: Standard Modbus RTU protocol compatible with RS485 and RS232C communication interfaces

Standard Modbus TCP protocol compatible with Ethernet RJ45 interface

Bluetooth paired with dedicated software enables short-distance data transmission and device parameter configuration

·Transmission function: Supports standard current transmission output with selectable signal source channels

·Report backup function: Supports backup of all accumulation reports

·Import and export function: Supports import and export of instrument configuration parameters

·Timed printing function: Enables timed printing of data such as flow rate, temperature, pressure and accumulation values

Non-standard Customization Support:

·Supports custom OEM faceplates and startup interface customization

·Supports customization of flow algorithms and operation interfaces

·Supports customization of signal types and technical parameters

·Supports customization of the F-LINK management system

Installation Methods:

Installation Method：

· Step 1: Push the instrument forward into the mounting hole from the front of the mounting panel (steel plate is recommended). The thickness of the mounting panel shall be 1.5~6.5 mm.

· Step 2: Install the mounting brackets supplied with the instrument as shown in the figure above (one bracket shall be installed on each of the left and right sides of the instrument; M4 standard screws are used for the instrument panel mounting brackets).

· Step 3: After the main body of the instrument is installed, connect the signal lines and power lines.
