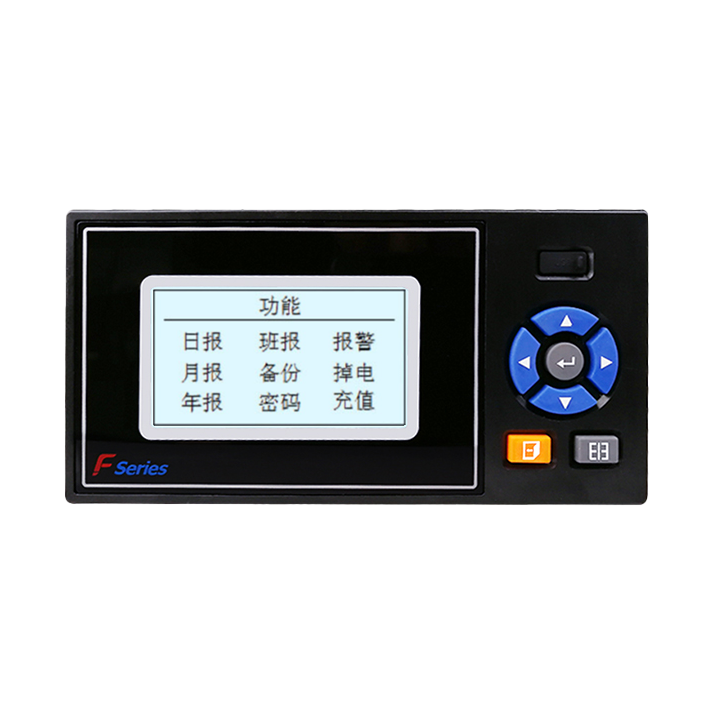

Product Features:

· Storage Function:

Equipped with USB function, supporting the export of daily, monthly and yearly flow reports.

It can record the number of power outages, total power outage duration, and the last power outage time.

· Prepaid Management:

Automatically closes the valve to stop service when the balance is zero.

Supports remote recharge and contactless IC card recharge.

Dual-level passwords for suppliers and demanders to solve supply and demand management issues with different access permissions.

· Calculation Function:

Calculates the density, enthalpy and other parameters of superheated steam and saturated steam based on the IF97 formula.

Supports dual compensation of temperature and pressure, and can automatically identify superheated steam and saturated steam.

Guarantees normal trade settlement when the sensor at the compensation end is abnormal.

· Management Function:

Enables protocol metering algorithm for high flow and low flow scenarios.

Supports metering during peak, off-peak and normal time periods.

Sets daily quota, monthly quota and balance attribution to realize daily and monthly consumption management.

· Non-standard Support:

- Supports customized report export function.

- Supports customized settlement methods.

- Supports customized heat calculation methods.

· Installation Method:

Installation Method:

· Step 1: Push the instrument forward into the mounting hole from the front of the mounting panel (steel plate is required). The thickness of the mounting panel shall be 1.5~6.5 mm.

· Step 2: Install the included mounting brackets of the instrument as shown in the figure above (one bracket shall be installed on each of the left and right sides of the instrument, and M4 standard screws shall be used for the instrument panel mounting brackets).

· Step 3: After the main body of the instrument is installed completely, connect the signal lines and power lines.
