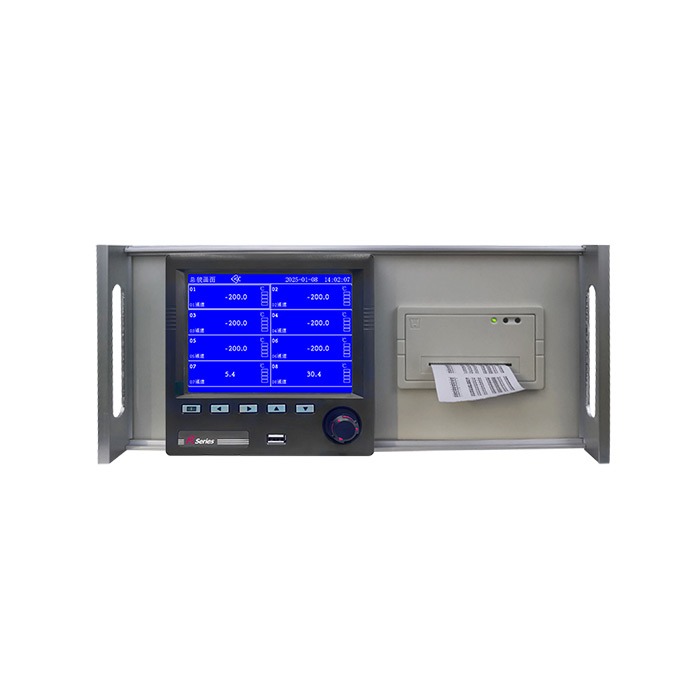

PR4100 Integrated High-Definition Blue Screen Paperless Recorder with Printing Function

Product Series

PR4100 Integrated High-Definition Blue Screen Paperless Recorder with Printing Function This series of instruments is one of the early professional paperless recorders in China. It features low daily maintenance workload, low operating cost, high reliability, flexible application, excellent on-site stability, and a long history of industrial application. It is widely applied in industries including petroleum and petrochemicals, chemical industry, papermaking and plastics, textile printing and dyeing, metallurgy and building materials, scientific education and national defense, biomedicine, municipal environmental protection, energy metering, food, grain and oil, tobacco, alcohol and beverages, equipment manufacturing, complete equipment supply, as well as agriculture, forestry, animal husbandry and fishery.

Product Features:

· 5.6-inch blue graphic LCD display

· Supports 16-channel power distribution output

· ABS buttons: sensitive touch, excellent dustproof performance and long service life

· Supports multiple signal inputs: over 30 types of signal input, compatible with 16 groups of power distribution output and 12-channel relay output

· EMC 4000V with strong anti-interference capability

Non-standard Customization Support:

· Customizable digital and switching input

· Customizable panel sticker and boot interface OEM service

· Customizable communication protocols and non-standard output of analog/digital signals

· Supports 12V/24V power supply

Installation Methods:

Installation Method:

· Step 1: Gently push the meter forward into the mounting hole from the front of the mounting panel (steel plate is recommended) to fit closely against the dashboard. The thickness of the mounting panel shall be between 2.0 mm and 8.0 mm.

· Step 2: As shown in the figure above, fasten the long screws on the two mounting brackets with a suitable screwdriver for installation using the brackets supplied with the meter (one bracket shall be installed on each of the upper and lower sides of the meter, and M4 standard screws shall be used for the dashboard mounting brackets).

· Step 3: After the main body of the meter is installed, connect the signal line and power line.

PR4100 Cabinet-Integrated Colorless Paperless Recorder Manual.pdf
