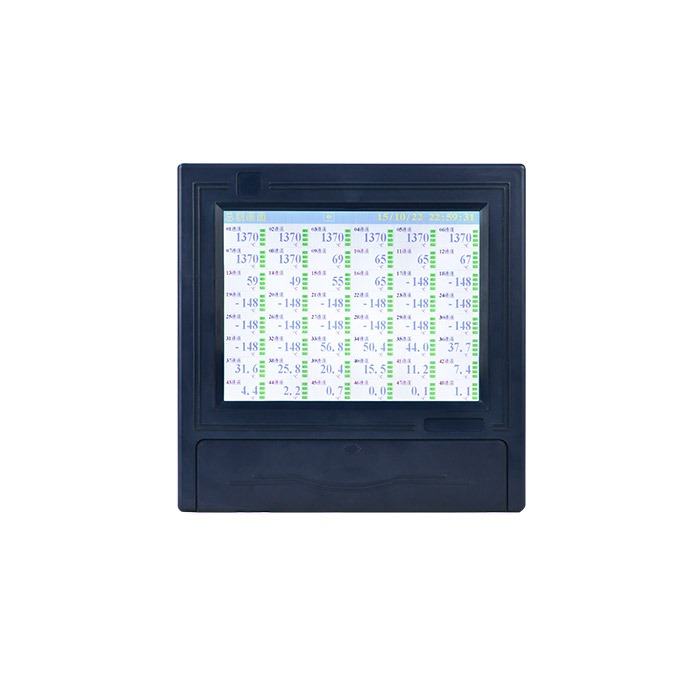

R8000 Medium and Long Chart Color Paperless Recorder

Product Series

R8000 Medium and Long Chart Color Paperless Recorder It is an outstanding product featuring powerful data processing capability, high operational reliability, large recording and storage capacity, rich display content, excellent computing performance and rapid system event response. Developed by our company, this medium and long chart color paperless recorder delivers exceptional performance, enabling the system to maintain long-term stable operation even when undertaking high-intensity industrial tasks and processing complex data. It is mainly applied in industries including petroleum and petrochemical, chemical industry, papermaking and plastics, textile printing and dyeing, metallurgy and building materials, scientific education and national defense, biomedicine, municipal environmental protection, energy metering, food, grain and oil, tobacco, alcohol and beverages, equipment manufacturing, complete equipment set, as well as agriculture, forestry, animal husbandry and fishery.

lProduct Features:

·Diversified display functions: It displays instrument information through various element screens including overview screen, bar graph screen, real-time trend curve screen, historical curve recall screen and list query screen. It features large display capacity, high resolution, clear screen display and user-friendly interface.

·Complete input functions: Fully isolated universal input supports simultaneous access to multiple signals without module replacement, which can be realized simply by software configuration with strong versatility.

·Rich optional/auxiliary functions:

Optional functions — Data backup, serial communication, serial port printing, alarm function, power supply output, transmission output, flow accumulation, Ethernet function, PID control and more.

Auxiliary functions: Fixed batch control, relay delay, alarm delay, etc.

·High adaptability and reliability: Minimal daily maintenance workload, low operating cost, wide application scope, excellent anti-interference performance, high stability, fast response speed and strong compatibility of data transfer.

Non-standard Customization Support:

·Customizable panel sticker and startup interface

·Customizable private communication protocol

·Customizable special control for industry applications

·Customizable functions of system management software

·Customizable process configuration animation function

·Customizable cloud management and report functions

·Supports 12V/24V power supply

Installation Methods:

Installation Method:

· Step 1: Push the instrument forward into the mounting hole from the front of the mounting panel (steel plate is required). The thickness of the mounting panel shall be 2.0~6.0 mm.

· Step 2: Install the mounting brackets supplied with the instrument as shown in the figure above (install two brackets respectively on the left and right sides of the instrument; M6 standard screws shall be used for the instrument panel mounting brackets).

· Step 3: After the main body of the instrument is installed, connect the signal wires and power wires.

R8000 Long-Type Chart Paperless Recorder with Color Paper Printer English User Manual.pdf
