Product Features：

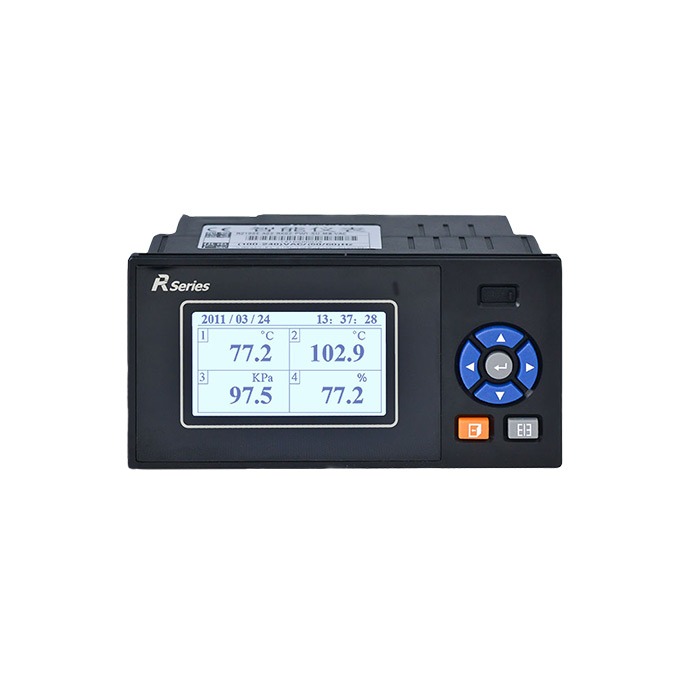

• Compact paperless recorder with 4-channel universal input and 2-channel transmission output.

• Equipped with dust plug design, greatly extending the service life of the USB port.

• Supports MODBUS RTU protocol, with baud rate up to 57600.

• Adopts high-brightness adjustable LED display for clearer viewing effect.

• Military-grade switching power supply with smaller ripple and ultra-high stability.

• Matched with dedicated system management software; supports multi-instrument networking and PC data recording.

Non-standard Customization：

• Customizable 4-channel relay output.

• Customizable 6-channel universal input.

• Customizable process flow and setting interface for PC management system.

• Customizable data report function for cloud management system.

• Customizable data analysis function for cloud management system.

• Customizable remote alarm control function for cloud management system.

Installation Method：

Installation Method：

• Step 1: Push the instrument forward into the mounting hole from the front of the mounting panel (steel plate is recommended). The thickness of the mounting panel shall be 1.5~6.5 mm.

• Step 2: Install the matching mounting brackets as shown in the figure above. Install one bracket on each left and right side of the instrument; the brackets are fixed with standard M4 screws.

• Step 3: After completing the instrument body installation, connect the signal wires and power wires accordingly.
